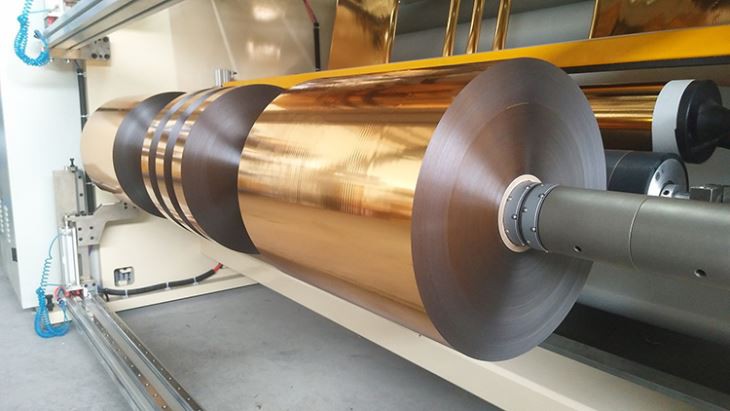

Hot Stamping Foil Slitter Rewinder Machine
Product Detail HS1600 separate unwinder slitting machine is specially designed to convert big jumbo rolls in high capacity. It can load max.1000mm diameter jumbo, and produce foil rolls on 3” & 6” cores up to 15,000 meter length. With regular working speed 400-500m/min, it is super high...
Features
Product Detail
HS1600 separate unwinder slitting machine is specially designed to convert big jumbo rolls in high capacity.
It can load max.1000mm diameter jumbo, and produce foil rolls on 3" & 6" cores up to 15,000 meter length.
With regular working speed 400-500m/min, it is super high productivity for long meter rolls.
Equipped with unique customized circular knife, the small rolls are perfect shape, no dust.
It is your ideal machine for slitting capacity expansion.
Technical Data：
|
Model |
HS1600S |
|
Foil Width |
500-1600mm |
|
Unwind Diameter |
1000mm |
|
Rewind Diameter |
600mm (3 inch core); 250mm(1 inch core) |
|
Knife |
Circular Knife + Razor Blade |
|
Rewind Width |
Min.50mm |
|
Rewind Shaft |
1 Inch Air Shafts, 3 Inch Differential Shafts, Optional 6 Inch Shaft |
|
Slitting Speed |
500m/min |
Standard Function：
- 3" & 6" shaftless unwind
- Splice joint table
- Edge guider
- Servo motorized waste edge collectors/winders
- Manual laser core positioning
- Finished roll unloading tree
Optional：
- Servo motorized automatic laser core positioning
- Automatic cross cut off
- Pneumatic knives
- Motorized finished roll discharging system
