Features

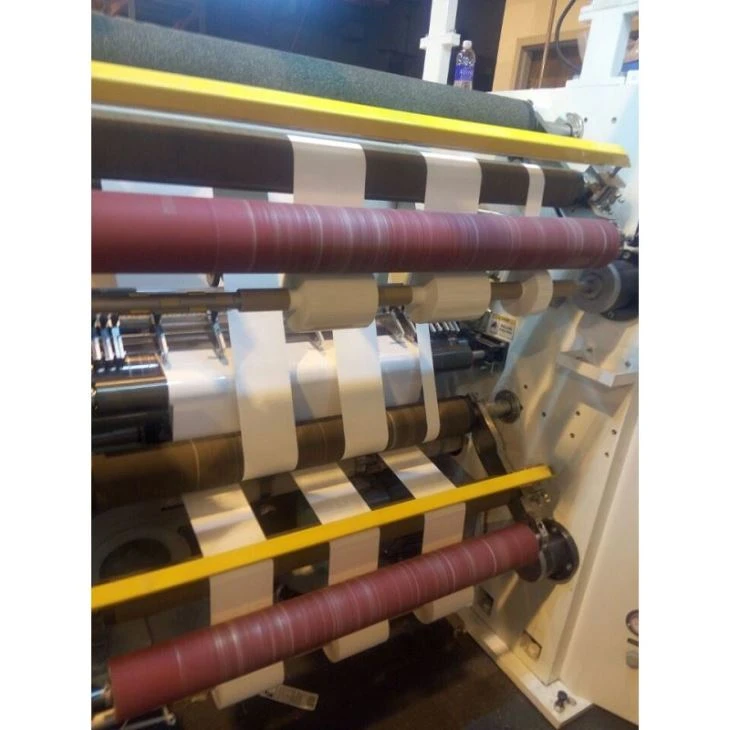

HS800 slitter machine is professionally designed to slit pigment foils. The machine is very compact and solid construction. It's equipped with both shear blade and razor blade systems, 1 inch rewind air shafts. The finished rolls are straight neat edge and no slitting dust. Being approved by many big foil converters, it is an ideal choice when your needs arise.
Product parameters:
Model | HS800 |
Foil Width | 200-800mm |
Max.Unwind Dia. | 800mm |
Max. Rewind Dia. | 250mm |
Slitting System | Shear Blade; Razor Blade |
Min. Cut Width | 25mm |
Rewind Core | 1” |
Slitting Speed | 150m/min |
Standard Function：
- Shaftless unwind, 3" & 6"
- Splice table
- Edge guiding
- Laser core positioning
- Finished roll unloading tree
Optional：
- Hydraulic jumbo roll pick-up
- 3" & 6" rewind shafts with max. 400m/min speed
- Waste sucking system
- CE fencing, safety radar
