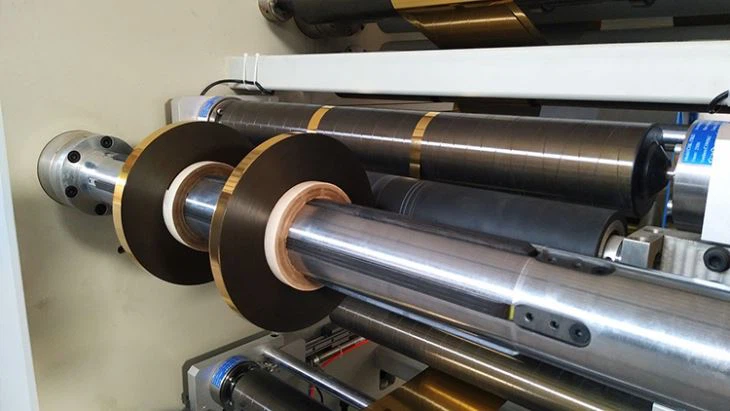

Narrow Hot Stamping Foil Slitter
Product Detail Narrow hot stamping foil slitter is designed to re-use the off cuts from the big foil slitting machine. It can spool or slit foil rolls on 1”,3” & 6” cores to rolls on 1”,3” & 6” cores. Equipped with specially customized knife system, it’s able to cut foil rolls minimum...
Features
Product Detail
Narrow hot stamping foil slitter is designed to re-use the off cuts from the big foil slitting machine.
It can spool or slit foil rolls on 1”,3” & 6” cores to rolls on 1”,3” & 6” cores.
Equipped with specially customized knife system, it’s able to cut foil rolls minimum 7mm width, with roll length up to 4000 meters.It’s very helpful and high productivity for special foil’s narrow roll slitting work.
Besides, it is also installed with Hansoar customized circular knife for regular size hot stamping foil and cold foil cutting, the performance is highly spoken by customers world-wide.
Technical Data：
Model | HS800 |
Material Width | 100-800mm |
Maximum Unwind Diameter | 600mm |
Unwind Shaft | 1” Air Shaft, 3” Air Shaft, Optional 6” Shaft |
Rewind Diameter | 400mm (3” core); 250mm(1” core) |
Knife | Circular Knife + Razor Knife |
Rewind Width | Min.7mm |
Rewind Shaft | 1” Air Shafts, 3” Air Shafts, Optional 6” Shaft |
Max.Slitting Speed | 300m/min |
Standard Function：
- Both unwinder and rewinder closed loop tension control
- Edge guider
- Two motors controlling rewinding
- Backward lay on roller system
