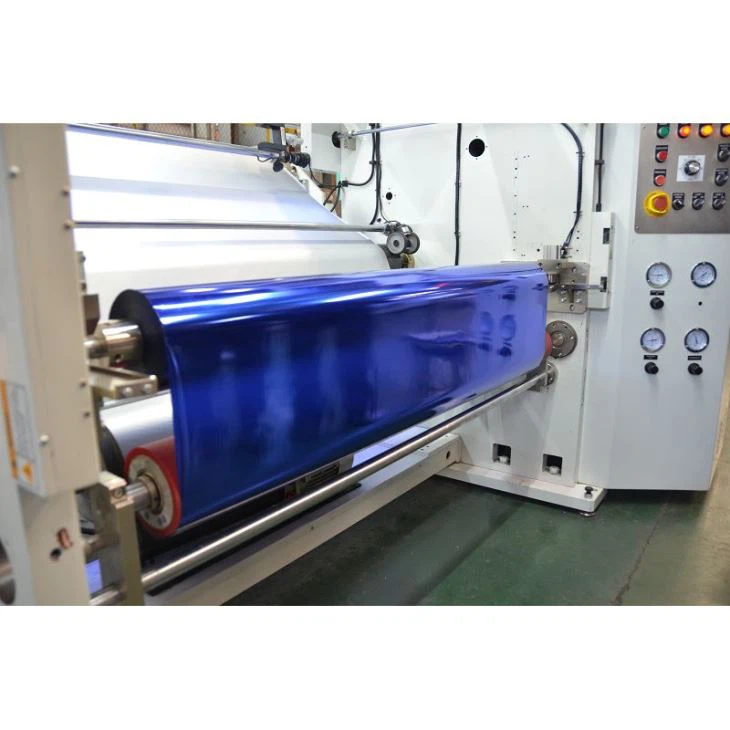

1 Inch Cold Foil Rewinder

Send Inquiry

Product Details

Hansoar manufactures professional hot and cold foil rewinder machine. The HR1300 is specially designed based on customer needs to rewind 1 inch foil rolls with soft tension and neat edge. After rewound, the finished roll is very ideal to be cut on the foil roll cutting machine.


Technical Data:

Model

HR1300

Material Width

500-1300mm

Unwind OD

600mm

Unwind Core

3” & 6”

Rewind OD

Max. 250mm

Rewind Core

1”

Rewind Speed

Max. 150m/min


Standard Functions:

- PLC + HCI

- Shaftless 3” & 6” unwinding

- Hydraulic jumbo roll pick-up

- Material splice table

- Edge guider

- Automatic stop

- Foil inspection light
